# Get started with ITCare

## How do I connect to ITCare? <a href="#gestiondecompte-howdoiconnecttoitcare" id="gestiondecompte-howdoiconnecttoitcare"></a>

It is not possible to create your own ITCare account to access the platform.

To receive an ITCare account, your organization's security representative must submit an account creation request.

## How do I request an ITCare account? <a href="#gestiondecompte-howdoirequestanitcareaccount" id="gestiondecompte-howdoirequestanitcareaccount"></a>

Please contact your Service Delivery Management or the commercial team at cegedim.cloud.

## How is ITCare authentication handled? <a href="#gestiondecompte-howisitcareauthenticationhandled" id="gestiondecompte-howisitcareauthenticationhandled"></a>

ITCare authentication is based on an e-mail address and a password that comply with the standards of the cegedim security policy.

API accounts use the OpenID protocol. More information about the ITCare API can be found at [itcare-api-authentication](https://academy.cegedim.cloud/itcare-api/itcare-api-authentication "mention").

## Is multi-factor authentication available? <a href="#gestiondecompte-ismulti-factorauthenticationavailable" id="gestiondecompte-ismulti-factorauthenticationavailable"></a>

Multi-factor authentication is available and mandatory for certain high privilege actions.

During the on-boarding process, you will be provided with all the information necessary to properly configure the MFA.

## What are the possible privileges in ITCare? <a href="#gestiondecompte-whatarethepossibleprivilegesinitcare" id="gestiondecompte-whatarethepossibleprivilegesinitcare"></a>

ITCare privileges are broken down into roles assigned to profiles.

Profiles are assigned to users.

### The roles <a href="#gestiondecompte-theroles" id="gestiondecompte-theroles"></a>

<table><thead><tr><th width="247">Roles</th><th>Description</th></tr></thead><tbody><tr><td>See resources</td><td>See all the resources and their informations. Read only</td></tr><tr><td>Manage maintenances</td><td>Ability to manage maintenances</td></tr><tr><td>Modify resources</td><td>Ability to modify resources except creation and deletion</td></tr><tr><td>Manage resources</td><td>Complete resource management</td></tr></tbody></table>

{% hint style="warning" %}
MFA must be configured and is mandatory for the following roles:

* Manage maintenances
* Modify resources
* Manage resources
  {% endhint %}

### The profiles <a href="#gestiondecompte-theprofiles" id="gestiondecompte-theprofiles"></a>

<table data-full-width="true"><thead><tr><th>Profiles</th><th data-type="checkbox">See resources</th><th data-type="checkbox">Manage maintenances</th><th data-type="checkbox">Modify resources</th><th data-type="checkbox">Manage resources</th></tr></thead><tbody><tr><td>Standard (STD)</td><td>true</td><td>false</td><td>false</td><td>false</td></tr><tr><td>Maintenance (DTM)</td><td>true</td><td>true</td><td>false</td><td>false</td></tr><tr><td>Operator (OPE)</td><td>true</td><td>true</td><td>true</td><td>false</td></tr><tr><td>Power (POW)</td><td>true</td><td>true</td><td>true</td><td>true</td></tr></tbody></table>

### Privilege Matrix <a href="#gestiondecompte-privilegematrix" id="gestiondecompte-privilegematrix"></a>

This non-exhaustive table describes the basic actions allowed by profile:

<table data-full-width="true"><thead><tr><th>Features</th><th>Label</th><th>Available for</th></tr></thead><tbody><tr><td>Bodies</td><td>create-instance</td><td>POW</td></tr><tr><td>start-instance</td><td>OPE</td><td></td></tr><tr><td>stop-instance</td><td>OPE</td><td></td></tr><tr><td>reset-instance</td><td>OPE</td><td></td></tr><tr><td>resize-compute-instance</td><td>OPE</td><td></td></tr><tr><td>delete-instance</td><td>POW</td><td></td></tr><tr><td>Instance monitoring</td><td>enable-monitoring-instance</td><td>OPE</td></tr><tr><td>disable-monitoring-instance</td><td>OPE</td><td></td></tr><tr><td>Snapshot of instances</td><td>create-snapshot</td><td>MNT</td></tr><tr><td>recover-snapshot</td><td>MNT</td><td></td></tr><tr><td>delete-snapshot</td><td>MNT</td><td></td></tr><tr><td>DNS aliases of instances</td><td>create-dns</td><td>OPE</td></tr><tr><td>delete-dns</td><td>OPE</td><td></td></tr><tr><td>LoadBalancers</td><td>create-lb</td><td>POW</td></tr><tr><td>start-lb</td><td>OPE</td><td></td></tr><tr><td>stop-lb</td><td>OPE</td><td></td></tr><tr><td>delete-lb</td><td>POW</td><td></td></tr><tr><td>Monitoring of LoadBalancers</td><td>enable-monitoring-lb</td><td>OPE</td></tr><tr><td>disable-monitoring-lb</td><td>OPE</td><td></td></tr><tr><td>Manage LoadBalancers</td><td>add-member-lb</td><td>OPE</td></tr><tr><td>delete-member-lb</td><td>OPE</td><td></td></tr><tr><td>update-member-state</td><td>OPE</td><td></td></tr><tr><td>DNS alias of LoadBalancers</td><td>create-dns-lb</td><td>OPE</td></tr><tr><td>delete-dns-lb</td><td>OPE</td><td></td></tr><tr><td>Manage maintenance</td><td>create-maintenance</td><td>MNT</td></tr><tr><td>delete-maintenance</td><td>MNT</td><td></td></tr><tr><td>Indicators</td><td>create-indicator</td><td>POW</td></tr><tr><td>update-indicator</td><td>POW</td><td></td></tr><tr><td>delete-indicator</td><td>POW</td><td></td></tr><tr><td>SMS</td><td>subscribe-vortext</td><td>POW</td></tr><tr><td>Storage Object</td><td>create-object-stores</td><td>POW</td></tr><tr><td>update-object-stores</td><td>OPE</td><td></td></tr><tr><td>delete-object-stores</td><td>POW</td><td></td></tr><tr><td>Storage Object - Users</td><td>create-user-objectstores</td><td>POW</td></tr><tr><td>update-user-objectstores</td><td>POW</td><td></td></tr><tr><td>delete-user-objectstores</td><td>POW</td><td></td></tr><tr><td>K8S Clusters</td><td>create-cluster</td><td>POW</td></tr><tr><td>create-cluster-namespace</td><td>OPE</td><td></td></tr><tr><td>delete-cluster-namespace</td><td>OPE</td><td></td></tr><tr><td>create-cluster-nodes</td><td>POW</td><td></td></tr><tr><td>delete-cluster-nodes</td><td>POW</td><td></td></tr></tbody></table>

## What are the Regions and Availability Zones in ITCare? <a href="#presentationitcare-whataretheregionsandavailabilityzonesinitcare" id="presentationitcare-whataretheregionsandavailabilityzonesinitcare"></a>

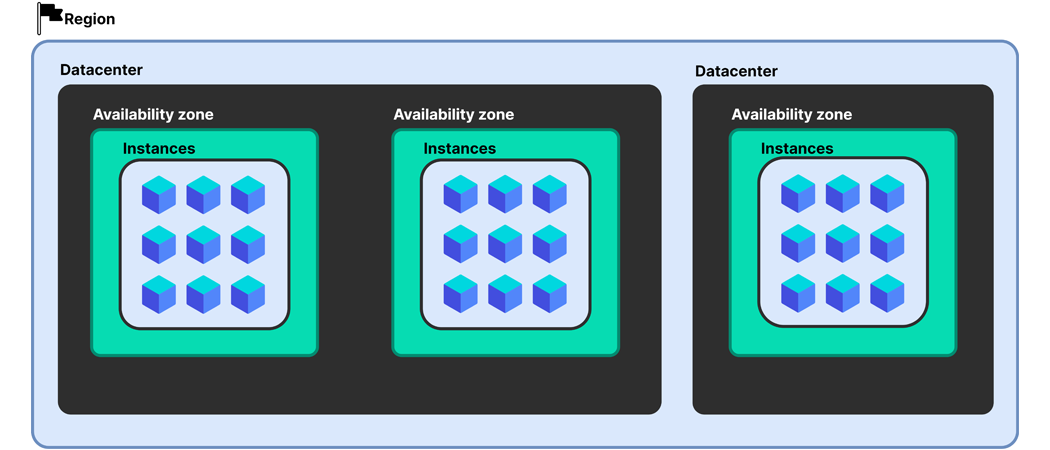

The topology of the cegedim.cloud hosting platform is divided into:

* **Regions**: a group of low latency data centers ( < 1 ms)
* **Availability zones**: a set of dedicated infrastructure components in a data center

<figure><picture><source srcset="https://835168969-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2FXoHyOBZPpJv3UALn4V%2Fuploads%2Fgit-blob-ef5f3587a4f59397c4277e4b549564e2fa725e85%2Fdark_eng%20(14).png?alt=media" media="(prefers-color-scheme: dark)"><img src="https://835168969-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2FXoHyOBZPpJv3UALn4V%2Fuploads%2Fgit-blob-dd9f19680365b3858dca792a6c054a02fe91457d%2Flighteng%20(3).png?alt=media" alt=""></picture><figcaption><p>Region and availability zones</p></figcaption></figure>

### What regions are available? <a href="#presentationitcare-whatregionsareavailable" id="presentationitcare-whatregionsareavailable"></a>

Here is the list of regions available to our customers:

<table><thead><tr><th width="134.33333333333331">Region</th><th width="173">Description</th><th>Datacenters</th></tr></thead><tbody><tr><td>EB</td><td>Paris area</td><td><p>EB4 : Boulogne-Billancourt</p><p>EB5 : Magny-les-Hameaux</p></td></tr><tr><td>ET</td><td>Toulouse area</td><td><p>ET1 : Labège</p><p>ET2 : Balma</p></td></tr></tbody></table>

### What Availability Zones are available? <a href="#presentationitcare-whataretheavailableareas" id="presentationitcare-whataretheavailableareas"></a>

#### EB Region <a href="#presentationitcare-ebregion" id="presentationitcare-ebregion"></a>

<table><thead><tr><th width="180.33333333333331">Availability Zone</th><th width="342">Description</th><th>Datacenter</th></tr></thead><tbody><tr><td>EB-HDS-A</td><td>Client zone</td><td>EB4</td></tr><tr><td>EB-HDS-B</td><td>Client zone</td><td>EB4</td></tr><tr><td>EB-HDS-C</td><td>Client zone</td><td>EB5</td></tr><tr><td>EB-A</td><td>Area reserved for the cegedim group</td><td>EB4</td></tr><tr><td>EB-B</td><td>Area reserved for the cegedim group</td><td>EB4</td></tr><tr><td>EB-C</td><td>Area reserved for the cegedim group</td><td>EB5</td></tr></tbody></table>

#### ET Region <a href="#presentationitcare-regionand" id="presentationitcare-regionand"></a>

<table><thead><tr><th width="186.33333333333331">Availability Zone</th><th width="360">Description</th><th>Datacenter</th></tr></thead><tbody><tr><td>ET-HDS-A</td><td>Client zone</td><td>ET1</td></tr><tr><td>ET-HDS-B</td><td>Client zone</td><td>ET1</td></tr><tr><td>ET-A</td><td>Area reserved for the cegedim group</td><td>ET1</td></tr><tr><td>ET-B</td><td>Area reserved for the cegedim group</td><td>ET1</td></tr></tbody></table>

## What is an ITCare resource? <a href="#presentationitcare-whatisanitcareresource" id="presentationitcare-whatisanitcareresource"></a>

A resource is an infrastructure or middleware component deployed in the **cegedim.cloud** Information System.

It can only belong to one Service (see [#presentationitcare-howaremyitcareresourcesorganized](#presentationitcare-howaremyitcareresourcesorganized "mention") for the definition of a Service)

A resource is systematically defined by the following properties:

* an **id**: unique identifier of the resource.
* a **type**: the type of the resource e.g. virtual instance, Kubernetes cluster, etc.
* a **name**: more convenient to handle than an id.
* a **status**: defines the state of the resource (active, inactive).
* an **environment**: defines the type of environment of the resource (production, qa, dev, test, etc.).
* **tags**: allows you to tag your resources with customizable keys/values that are queryable.

## What are the possible statuses for resources? <a href="#presentationitcare-whatarethepossiblestatusesforresources" id="presentationitcare-whatarethepossiblestatusesforresources"></a>

Here are the possible statuses of a resource that are visible by the web UI or returned by the API:

<table><thead><tr><th width="144.33333333333331">Status</th><th width="453">Description</th><th>API code</th></tr></thead><tbody><tr><td>Active</td><td>The resource is active and the service is available.</td><td>ACTIVE</td></tr><tr><td>Preparation</td><td>The resource is being installed or configured.<br>The service is not yet available.</td><td>PREPARATION</td></tr><tr><td>Inactive</td><td>The resource is inactive and the service is unavailable.</td><td>INACTIVE</td></tr></tbody></table>

## How are my ITCare resources organized? <a href="#presentationitcare-howaremyitcareresourcesorganized" id="presentationitcare-howaremyitcareresourcesorganized"></a>

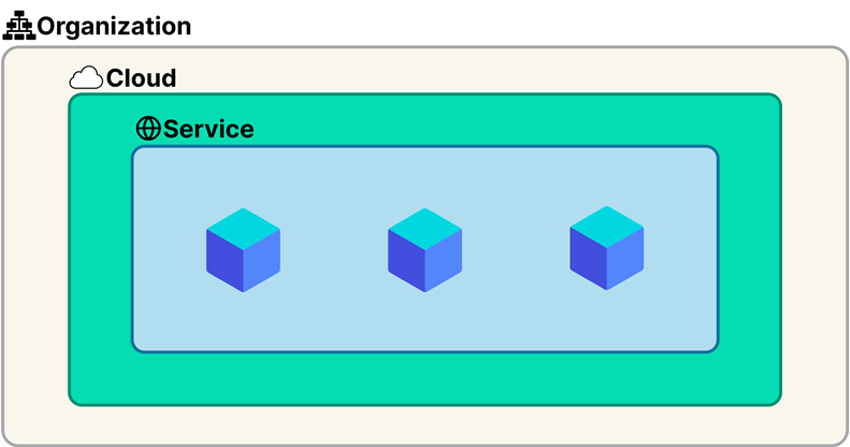

Each cegedim.cloud customer has an **Organization** that materializes its existence within our IS.

Multiple **Clouds** can be created within an organization. These allow partitioning of resources and user rights.

{% hint style="info" %}
By default, only one Cloud is defined for a new Organization.\
Additional Clouds can be created upon request.
{% endhint %}

You can therefore define, at the level of a Cloud, who has access to what and what actions can be performed.

It is therefore possible, for example, to have a Cloud that gives full power to your development teams so as not to disrupt production. Within a Cloud, resources are then grouped into **Services**.

The Services allow you to group your resources in a logical way according to several free criteria:

* The scope of an application
* By environment
* Any other free criteria: by customer for example

{% hint style="warning" %}
The Services do not allow the application of user rights restrictions.
{% endhint %}

In ITCare, the Services have dedicated pages that allow you to easily consult all the resources attached to them.

<figure><picture><source srcset="https://835168969-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2FXoHyOBZPpJv3UALn4V%2Fuploads%2Fgit-blob-f68ca62c35bf3467122eec97c961922454ea1a77%2Fengdark%20(3).png?alt=media" media="(prefers-color-scheme: dark)"><img src="https://835168969-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2FXoHyOBZPpJv3UALn4V%2Fuploads%2Fgit-blob-d9d70430d985b0687f6512cfe4fa51535ecf4ff3%2Fenglight%20(2).png?alt=media" alt="" width="563"></picture><figcaption><p>Resources organization</p></figcaption></figure>
